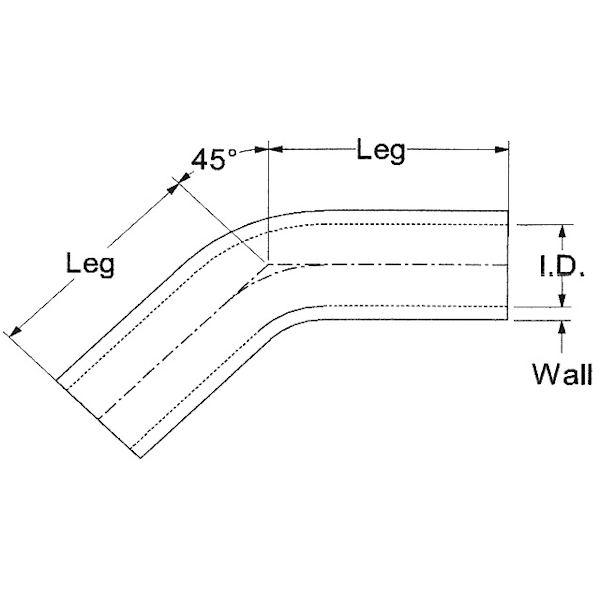

Samco Silikon-Aramid Schlauchbogen 45°
SXE456.5
Lieferzeit: über 3 Wochen
Von CHF 26.35
Inkl. 8.1 % MwSt. zzgl. Versand
Samco Silikon-Aramid Schlauchbogen 45°.
Einsatzbereich: Kühlwasser, Druckschlauch, Ladeluft, Turbolader
Material: Verstärktes Silikon mit Aramid
max. Temperatur: ca. 250°C
Lagen: 4
|
Innendurchmesser |
Wandstärke |
Schenkellänge |
Betriebsdruck max. |
Platzdruck |
|
6.5mm |
4,0mm |
63,0mm |
19,2 bar |
76,6 bar |
|
8mm |
4,0mm |
63,0mm |
16,1 bar |
64,2 bar |
|
9.5mm |
4,0mm |
63,0mm |
13,9 bar |
55,4 bar |
|
11mm |
4,0mm |
63,0mm |
12,2 bar |
48,9 bar |
|
13mm |
4,0mm |
102,0mm |
10,6 bar |
42,4 bar |
|
16mm |
4,0mm |
102,0mm |
8,9 bar |
35,5 bar |
|
18mm |
4,0mm |
102,0mm |
8,0 bar |
32,3 bar |
|
19mm |
4,0mm |
102,0mm |
7,7 bar |
30,6 bar |
|
20mm |
4,0mm |
102,0mm |
7,2 bar |
28,8 bar |
|
22mm |
4,0mm |
102,0mm |
6,8 bar |
27,0 bar |
|
25mm |
4,0mm |
102,0mm |
6,1 bar |
24,2 bar |
|
28mm |
4,0mm |
102,0mm |
5,5 bar |
22,0 bar |
|
30mm |
4,0mm |
102,0mm |
5,2 bar |
20,7 bar |
|
32mm |
4,0mm |
102,0mm |
9,4 bar |
19,6 bar |
|
35mm |
4,0mm |
102,0mm |
4,5 bar |
18,1 bar |
|
38mm |
4,0mm |
102,0mm |
4,2 bar |
16,9 bar |
|
41mm |
4,0mm |
102,0mm |
4,0 bar |
15,8 bar |
|
45mm |
4,0mm |
102,0mm |
3,7 bar |
14,6 bar |
|
48mm |
4,0mm |
102,0mm |
3,5 bar |
13,8 bar |
|
51mm |
4,0mm |
102,0mm |
4,3 bar |
17,4 bar |
|
54mm |
4,0mm |
102,0mm |
4,1 bar |
16,5 bar |
|
57mm |
4,0mm |
102,0mm |
3,9 bar |
15,7 bar |
|
60mm |
4,0mm |
127,0mm |
3,7 bar |
15,0 bar |
|
63mm |
4,0mm |
127,0mm |
3,6 bar |
14,3 bar |
|
65mm |
4,0mm |
127,0mm |
3,5 bar |
13,9 bar |
|
68mm |
4,0mm |
127,0mm |
3,3 bar |
13,4 bar |
|
70mm |
4,0mm |
127,0mm |
3,3 bar |
13,0 bar |
|
76mm |
4,0mm |
127,0mm |
3,0 bar |
12,1 bar |
|
80mm |
4,0mm |
127,0mm |
2,9 bar |
11,6 bar |
|
83mm |
4,0mm |
127,0mm |
2,8 bar |
11,2 bar |
|
89mm |
4,0mm |
127,0mm |
2,6 bar |
10,5 bar |
|
102mm |
4,0mm |
152,0mm |
2,3 bar |
9,3 bar |
