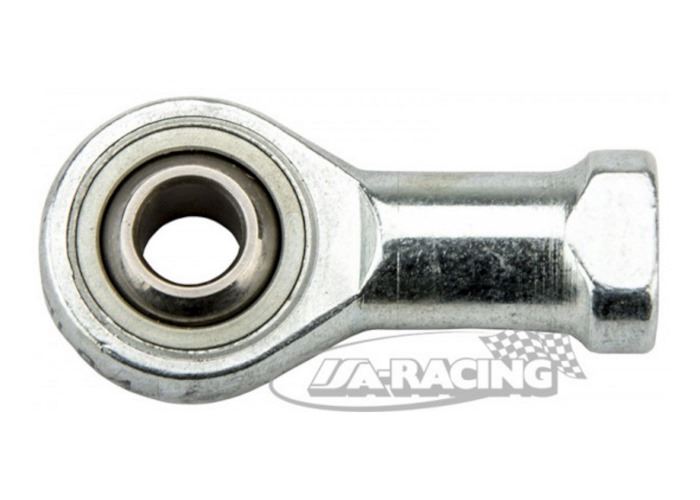

Standard Fluro Gelenk mit metrischem Innengewinde
6180-2
Lieferzeit: Auf Anfrage
Von CHF 14.15
Inkl. 8.1 % MwSt. zzgl. Versand
Standard Fluro Gelenke mit metrischem Innengewinde.
Gehäuse: bis Grösse 12 Automatenstahl 9SMnPb28K, gedreht, verzinkt ab Grösse 14 Vergütungsstahl C22, geschmiedet, verzinkt
Lagerschale: Automatenstahl 9SMnPb28K, verzinkt, mit eingeklebtem PTFE-Gewebe
Innenring: Wälzlagerstahl 100Cr6, gehärtet, geschliffen, poliert
|

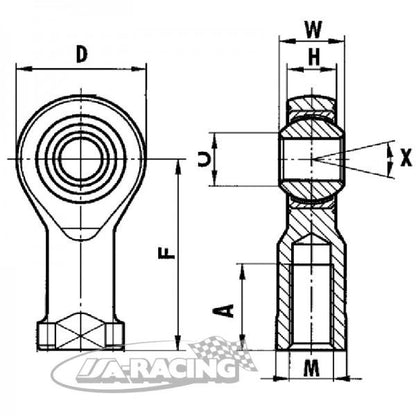

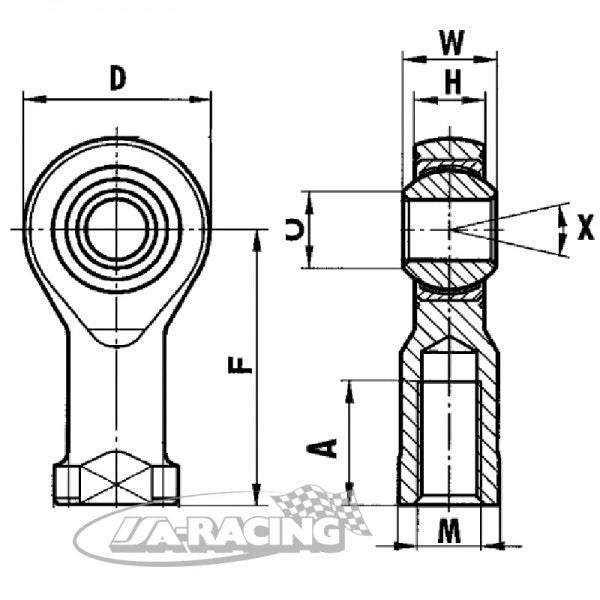

Best. Nr. Rechtsgew. |
Best. Nr. Linksgew. |
M |
Bohrloch |
W |
H |
O |
D |
F |
A |
Gewicht |
|
6180-1 |
6180-2 |
M3x0,5 |
3mm |
6mm |
4,5mm |
5,1mm |
14mm |
21mm |
10mm |
6g |
|
6181-1 |
6181-2 |
M5x0,8 |
5mm |
8mm |
6,0mm |
7,7mm |
18mm |
27mm |
10mm |
18g |
|
6182-1 |
6182-2 |
M6x1 |
6mm |
9mm |
6,75mm |
8,9mm |
20mm |
30mm |
12mm |
27g |
|
6183-1 |
6183-2 |
M8x1 |
8mm |
12mm |
9,0mm |
10,4mm |
24mm |
36mm |
16mm |
46g |
|
6183-3 |
6183-4 |
M8x1,25 |
8mm |
12mm |
9,0mm |
10,4mm |
24mm |
36mm |
16mm |
46g |
|
6184-1 |
6184-2 |
M10x1,25 |
10mm |
14mm |
10,5mm |
12,9mm |
28mm |
43mm |
20mm |
76g |
|
6184-3 |
6184-4 |
M10x1,5 |
10mm |
14mm |
10,5mm |
12,9mm |
28mm |
43mm |
20mm |
76g |
|
6185-1 |
6185-2 |
M12x1,25 |
12mm |
16mm |
12,0mm |
15,4mm |
32mm |
50mm |
22mm |
115g |
|
6185-5 |
6185-6 |
M12x1,5 |
12mm |
16mm |
12,0mm |
15,4mm |
32mm |
50mm |
22mm |
115g |
|
6185-3 |
6185-4 |
M12x1,75 |
12mm |
16mm |
12,0mm |
15,4mm |
32mm |
50mm |
22mm |
115g |
|
6186-1 |
6186-2 |
M14x1,5 |
14mm |
19mm |
13,5mm |
16,8mm |
36mm |
57mm |
25mm |
170g |
|
6186-3 |
6186-4 |
M14x2 |
14mm |
19mm |
13,5mm |
16,8mm |
36mm |
57mm |
25mm |
170g |
|
6187-1 |
6187-2 |
M16x1,5 |
16mm |
21mm |
15,0mm |
19,3mm |
42mm |
64mm |
28mm |
230g |
|
6187-3 |
6187-4 |
M16x2 |
16mm |
21mm |
15,0mm |
19,3mm |
42mm |
64mm |
28mm |
230g |
|
6188-1 |
6188-2 |
M18x1,5 |
18mm |
23mm |
16,5mm |
21,8mm |
46mm |
71mm |
32mm |
320g |
|
6189-1 |
6189-2 |
M20x1,5 |
20mm |
25mm |
18,0mm |
24,3mm |
50mm |
78mm |
47mm |
348g |
|
6189-3 |
6189-4 |
M22x1,5 |
22mm |
28mm |
20,0mm |
25,8mm |
54mm |
84mm |
51mm |
443g |
