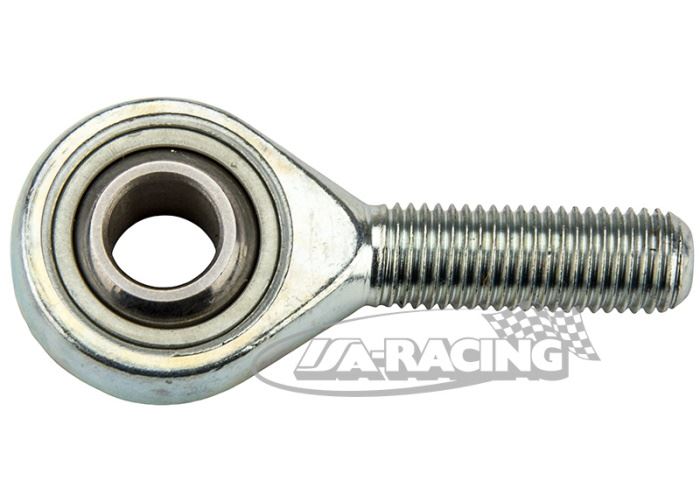

Standard Fluro Gelenk mit metrischem Aussengewinde
6280-2
Lieferzeit: ca. 2-3 Wochen
Von CHF 14.15
Inkl. 8.1 % MwSt. zzgl. Versand
Standard Fluro Gelenk mit metrischem Aussengewinde.
Gehäuse: bis Grösse 12 Automatenstahl 9SMnPb28K, gedreht, verzinkt ab Grösse 14 Vergütungsstahl C22, geschmiedet, verzinkt
Lagerschale: Automatenstahl 9SMnPb28K, verzinkt, mit eingeklebtem PTFE-Gewebe
Innenring: Wälzlagerstahl 100Cr6, gehärtet, geschliffen, poliert
Standard Fluro Gelenk mit metrischem Aussengewinde.
|
Best. Nr. Rechtsgew. |
Best. Nr. Linksgew. |
M |
B |
W |
H |
O |
D |
F |
A |
Gewicht |
|
6280-1 |
6280-2 |
M3x0,5 |
3mm |
6mm |
4,5mm |
5,1mm |
14mm |
26mm |
15mm |
6g |
|
6281-1 |
6281-2 |
M5x0,8 |
5mm |
8mm |
6,0mm |
7,7mm |
18mm |
33mm |
20mm |
13g |
|
6282-1 |
6282-2 |
M6x1 |
6mm |
9mm |
6,75mm |
8,9mm |
20mm |
36mm |
22mm |
20g |
|
6283-1 |
6283-2 |
M8x1 |
8mm |
12mm |
9,0mm |
10,4mm |
24mm |
42mm |
25mm |
33g |
|
6283-3 |
6283-4 |
M8x1,25 |
8mm |
12mm |
9,0mm |
10,4mm |
24mm |
42mm |
25mm |
33g |
|
6284-1 |
6284-2 |
M10x1,25 |
10mm |
14mm |
10,5mm |
12,9mm |
28mm |
48mm |
29mm |
56g |
|
6284-3 |
6284-4 |
M10x1,5 |
10mm |
14mm |
10,5mm |
12,9mm |
28mm |
48mm |
29mm |
56g |
|
6285-1 |
6285-2 |
M12x1,25 |
12mm |
16mm |
12,0mm |
15,4mm |
32mm |
54mm |
33mm |
87g |
|
6285-5 |
6285-6 |
M12x1,5 |
12mm |
16mm |
12,0mm |
15,4mm |
32mm |
54mm |
33mm |
87g |
|
6285-3 |
6285-4 |
M12x1,75 |
12mm |
16mm |
12,0mm |
15,4mm |
32mm |
54mm |
33mm |
87g |
|
6286-1 |
6286-2 |
M14x1,5 |
14mm |
19mm |
13,5mm |
16,8mm |
36mm |
60mm |
38mm |
129g |
|
6286-3 |
6286-4 |
M14x2 |
14mm |
19mm |
13,5mm |
16,8mm |
36mm |
60mm |
38mm |
129g |
|
6287-1 |
6287-2 |
M16x1,5 |
16mm |
21mm |
15,0mm |
19,3mm |
42mm |
66mm |
40mm |
189g |
|
6287-3 |
6287-4 |
M16x2 |
16mm |
21mm |
15,0mm |
19,3mm |
42mm |
66mm |
40mm |
189g |
|
6288-1 |
6288-2 |
M18x1,5 |
18mm |
23mm |
16,5mm |
21,8mm |
46mm |
72mm |
44mm |
267g |
|
6289-1 |
6289-2 |
M20x1,5 |
20mm |
25mm |
18,0mm |
24,3mm |
50mm |
78mm |
47mm |
348g |
|
6289-3 |
6289-4 |
M22x1,5 |
22mm |
28mm |
20,0mm |
25,8mm |
54mm |
84mm |
51mm |
443g |
