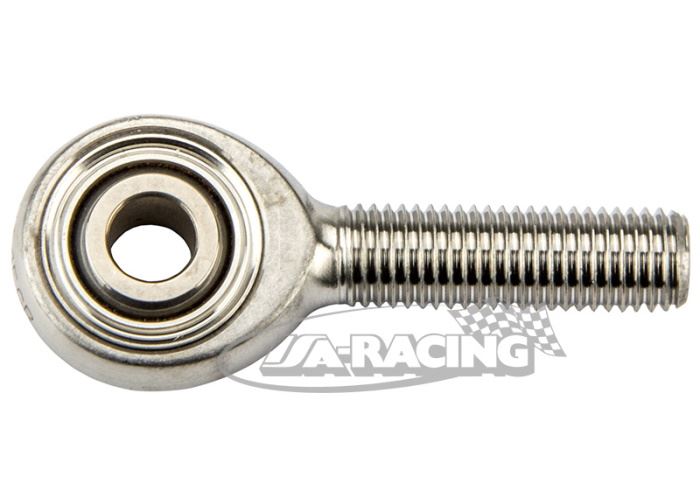

Hochfestes NMB Gelenk mit Zoll Aussengewinde, normaler Kippwinkel

Best. Nr. Rechtsgew.

Best. Nr. Linksgew.

M

B

W

H

D

F

A

X

6140-1

6140-2

5/16"

1/4"inch

9,53mm

8,56mm

20,47mm

39,67mm

24,59mm

14°

6141-1

6141-2

3/8"

5/16"inch

11,10mm

8,31mm

22,86mm

47,63mm

30,15mm

12°

6141-3

6141-4

5/16"

5/16"inch

11,10mm

8,31mm

22,86mm

47,63mm

30,15mm

12°

6142-1

6142-2

7/16"

3/8"inch

12,70mm

10,57mm

26,04mm

49,23mm

30,15mm

10°

6142-3

6142-4

3/8"

3/8"inch

12,70mm

10,57mm

26,04mm

49,23mm

30,15mm

10°

6142-5

6142-6

1/2"

3/8"inch

12,70mm

10,57mm

26,04mm

49,23mm

30,15mm

10°

6143-1

6143-2

1/2"

7/16"inch

14,27mm

11,48mm

29,21mm

53,98mm

32,54mm

14°

6143-3

6143-4

7/16"

7/16"inch

14,27mm

11,48mm

29,21mm

53,98mm

32,54mm

14°

6144-1

6144-2

5/8"

1/2"inch

15,88mm

13,08mm

33,96mm

61,93mm

37,29mm

12°

6144-3

6144-4

1/2"

1/2"inch

15,88mm

13,08mm

33,96mm

61,93mm

37,29mm

12°

6145-1

6145-2

3/4"

5/8"inch

19,05mm

14,66mm

38,74mm

66,68mm

39,67mm

16°

6145-3

6145-4

5/8"

5/8"inch

19,05mm

14,66mm

38,74mm

66,68mm

39,67mm

16°
